Ronchi Mask

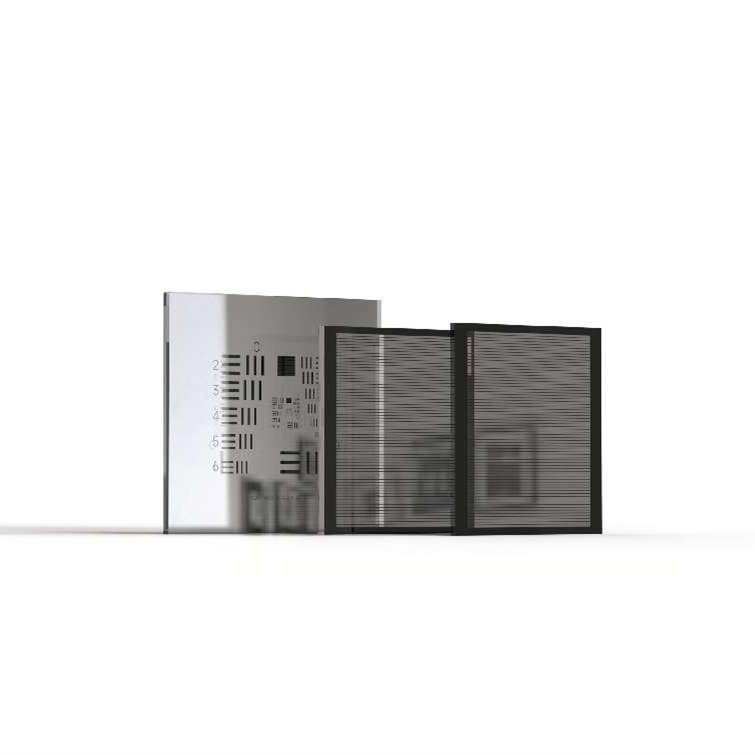

Ronchi rulings are bar and space square wave targets,consist of dark, parallel bars with widths that are equal to the distance between them. In any line grating, one dark bar and one blank space compose a line pair. The pattern has very high contrast ratio and edge definition.
Description
Custom Ronchi Rulings and line Grating Targets
The resolution of an optical system is dependent on its ability to distinguish adjacent line pairs
Ronchi rulings are bar and space square wave targets,consist of dark, parallel bars with widths that are equal to the distance between them. In any line grating, one dark bar and one blank space compose a line pair. The pattern has very high contrast ratio and edge definition. They are available as chrome on glass, or on a variety of photographic films or papers. We offer several standard as well as custom sizes and custom shape ronchi ruling and grating targets.We also offer precise, large-area, single-frequency ronchi ruling and Variable Frequency Ronchi Rulings Targets ,such as 5 lp/mm to 120 lp/mm or 5 lp/mm to 200 lp/mm,for evaluating resolution, field distortion, and parfocal stability in optical systems,calibrate video systems and inspect unknown resolutions.
The grating resolution is defined by the number of line pairs in a given amount of space and is given in line pairs per millimeter (lp/mm).
Our Ronchi Ruling highest precision is ±0.5 μm, better than the products in the current market. We offers Ronchi ruling targets with a range of resolutions from 2 lp/mm to 250 lp/mm.
Features:
● Vacuum Deposited Chrome on substrate pattern with bar and space square wave
● Substrate: Glass, Photographic films / HD Photographic papers / Ceramic
● Background: Transmissive and Opaque for options
● Lines Parallel to Edge
● High Tolerance: ±0.5um / ±1 um
● Evaluating resolution, field distortion, parfocal stability,calibrate video systems and inspect unknown resolutions
● 2 lp/mm to 250 lp/mm for options
● Single-frequency ronchi ruling Targets and Variable Frequency ronchi ruling Targets
● Customized size
Variable Line Gratings:
Visions Plus company offers a variable line grating target with a range of resolutions from 2 lp/mm to 250 lp/mm. A variable line grating has some number of grating sections, which increase or decrease in resolution as you move from one to the next. By identifying the highest resolution line grating that an optical system is able to resolve, the user determines the resolution of the system
