USAF 1951 Resolution Test Chart On Ceramic
You need High resolution USAF test target to identify resolution of machine vision or computer vision systems,since the industrial 4.0 requires higher accuracy for the vision images. Our ceramic target tolerance the best is ±0.5µm. Totally Conform with the 1951 air force resolution chart.
Description
USAF1951 Calibration targets on Ceramic
You need High resolution USAF test target to identify resolution of machine vision or computer vision systems,since the industrial 4.0 requires higher accuracy for the vision images. Our ceramic target tolerance the best is ±0.5µm. Totally Conform with the 1951 air force resolution chart.
Features:
● Negative and Positive Patterns On Ceramic
● Various Sizes Available
● High accuracy ±1µm~10µm and better ±0.5µm
● Each is Boxed and Includes Resolution Value Chart
Specification:
| Type | Photolithographic |
Design | Chrome-on-Ceramic |
Substrate | Matte Ceramic / Glossy Ceramic |
Chrome Thickness | 100~120nm |
Substrate Thickness | 0.38mm, 0.635mm,1.0mm, 3.0mm, 5.0mm, 10mm |
Line Spacing Tolerance | ±4 µm / 2 µm (one light line and one dark line) or 1 µm |
Surface Flatness | 30 µm~100 µm according to different plate dimension |
Dimensions | Standard or Custom |
Ceramic is Opaque （ light-proof）and diffuse reflection | High precision Ceramic | Calibration targets with laser photolithography process, standard accuracy 1μm, |
|
Ceramic | The accuracy is 10um, |
|
Positive usaf resolution target and Negative USAFTargets:
Application:
Positive usaf test targets are recommended for quality control of vision systems and testing instruments. Negative usaf test targets targets can be used on the high power microscope head.
The USAF1951 pattern’s different resolution units use the corresponding group and unit marks, and the corresponding resolution of each unit can be obtained by looking up the including table.

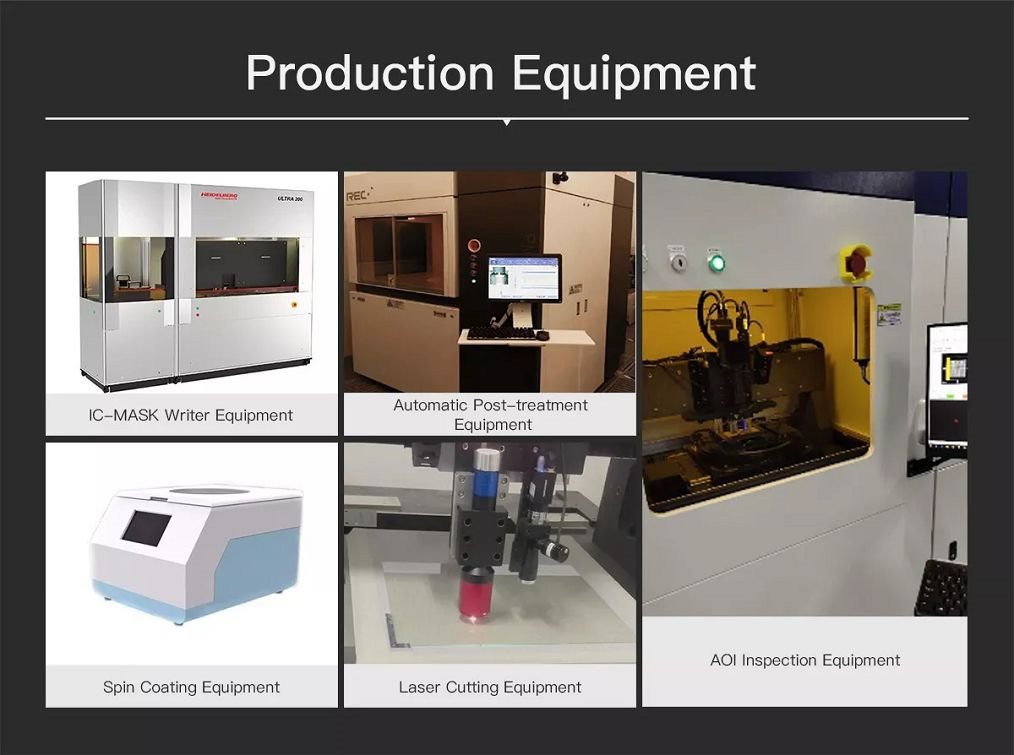

Factory Equipment :
IC-Mask writer equipment,Automatic Post-treatment equipment, Spin coating equipment, Laser cutting equipment,AOI inspection equipment,3D Automatic Measuring Instrument , Reflectivity Detection Instrument , Optical Density Meter
Compatible:
Our usaf 1951 target are compatible with edmunds usaf test chart, MVTec usaf resolution chart, Cognex usaf 1951 chart , usaf target thorlabs,
Packing and shipment::
